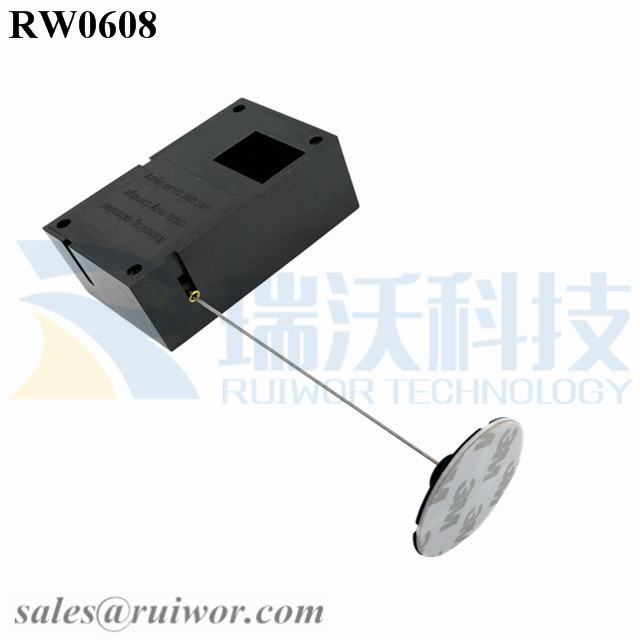

RW0608 Cuboid Ratcheting Retractable Cable Plus Stop Function and 38mm Circular Sticky Flexible ABS Plate Featured Image
  • RW0608 Cuboid Ratcheting Retractable Cable Plus Stop Function and 38mm Circular Sticky Flexible ABS Plate
  • RW0608 Cuboid Ratcheting Retractable Cable Plus Stop Function and 38mm Circular Sticky Flexible ABS Plate
  • RW0608 Cuboid Ratcheting Retractable Cable Plus Stop Function and 38mm Circular Sticky Flexible ABS Plate

RW0608 Cuboid Ratcheting Retractable Cable Plus Stop Function and 38mm Circular Sticky Flexible ABS Plate

  • Model Number:  RW0608
  • Box Size:  71(L)x45(W)x21(H) MM
  • Box Color:

  • Box Fixing Accessories:

  • Cable Exit Locations:

  • Cable Materials:

  • Cable End:

  • Additional Functions:

  • Retractable Cable Length:

  • Cable Retracting Force:

  • Cable Diameter:

    • Reset
  • Packaging Requirements:

Prices of customized products needto be negotiated
USD$3.24
Wholesale Price:
Qty Unit Price Lead Time
1 -49 Sets USD$3.24 6 Working Days
50 -199 Sets USD$2.07 6 Working Days
200 -499 Sets USD$1.95 6 Working Days
500 -999 Sets USD$1.89 6 Working Days
1000 - USD$1.82 7 Working Days

Product Detail

Product Tags

Video Display about RW0608 Ratcheting Retractable Cable

RW0608 Cuboid Security Pull Box Plus Stop Function and 38mm Circular Sticky Flexible ABS Plate

Security Pull Box also known as recoilers, security tether and pull-box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.

RW0608 Spring Return Steel Cable Reel is customized with a ratchet stop that holds the cable in one position once it is extended. The cable stays loose to allow full freedom products test for customers, and a strong tug on the cable causes it to go back into the box.

RW0608 Security Pull Box Parameters

● Materials: Box is made of ABS plastic, with retractable spring built inside and stainless steel cable winding onto the reel inside.
● Box fixing way: 3M double adhesive tape (Screws mounting is avaiable, the standard will be 3M Tap)

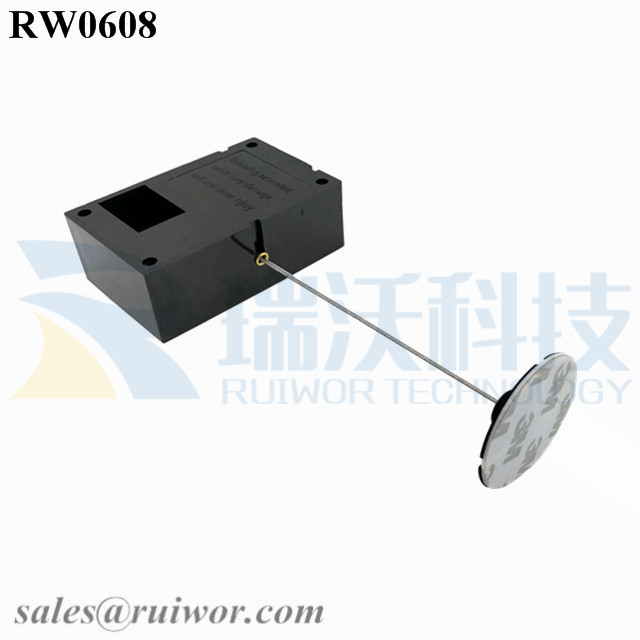

● Cable Exit Locations: B – side of the short edge. (A -side of the long edge, C - middle of the long edge are avaiable,the standard will be exit B)
● Box Size: 71x45x21MM
● Box Colors: Black (Customized color are avaiable, the standard will be Black)
● Available Retracting forces: 1/3LB (1/2LB, 1LB, 1.2LB and customized force are avaiable, the standard will be 1/3LB)
● Cable Colors: Transparent nylon cover the stainless steel cable (Black nylon covered and customized color are avaiable, the standard will be Transprent nylon covered)
● Retractable Cable length: 95 cm (Customized length is avaiable, Max: 300cm, the standard will be 95cm)
● Cable Diameter: 1.1mm (0.6mm, 1.2mm, 1.5mm and customized size are avaiable, the standard will be 1.1mm)
● Cable end details: Φ38MM Circular Sticky Flexible Black ABS Plate (White and customized color are avaiable, the standard will be black)

RW0608 Security Pull Box Specifications

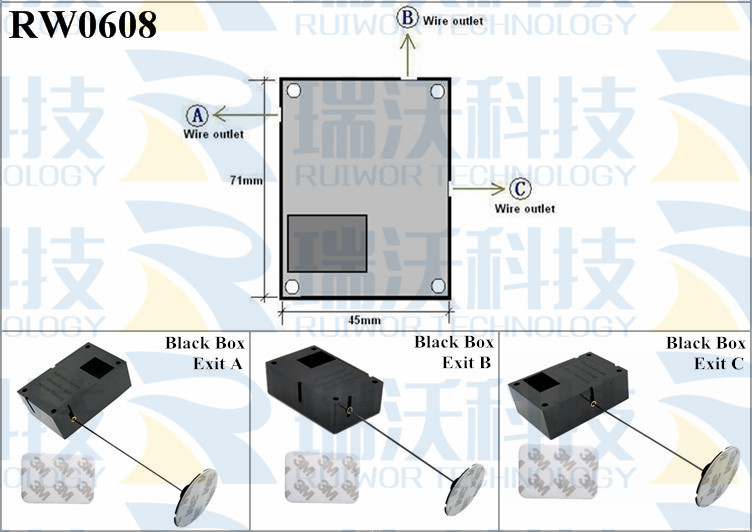

RW0608 Security Pull Box specifications (cable exit details, box size details)

Remark:
For RW0608 security pull box, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW0608 security pull box can not meet your requirements, please return to the top and send us an inquiry to discuss more details.
