RW0711 Square Retractable Cable Plus M6x8MM /M8x8MM or Customized Flat Head Screw Cable End Featured Image
  • RW0711 Square Retractable Cable Plus M6x8MM /M8x8MM or Customized Flat Head Screw Cable End
  • RW0711 Square Retractable Cable Plus M6x8MM /M8x8MM or Customized Flat Head Screw Cable End

RW0711 Square Retractable Cable Plus M6x8MM /M8x8MM or Customized Flat Head Screw Cable End

  • Model Number:  RW0711
  • Box Size:  48(L)x48(W)x17.3(H) MM
  • Box Color:

  • Box Fixing Accessories:

  • Cable Materials:

  • Additional Functions:

  • Cable End:

  • Retractable Cable Length:

  • Cable Retracting Force:

  • Cable Diameter:

    • Reset
  • Packaging Requirements:

Prices of customized products needto be negotiated
USD$2.47
Wholesale Price:
Qty Unit Price Lead Time
0 -49 Sets USD$2.47 6 Working Days
50 -199 Sets USD$1.58 6 Working Days
200 -499 Sets USD$1.44 6 Working Days
500 -999 Sets USD$1.27 6 Working Days
1000 - USD$1.20 7 Working Days

Product Detail

Product Tags

Video Display about RW0711 Retractable Cable

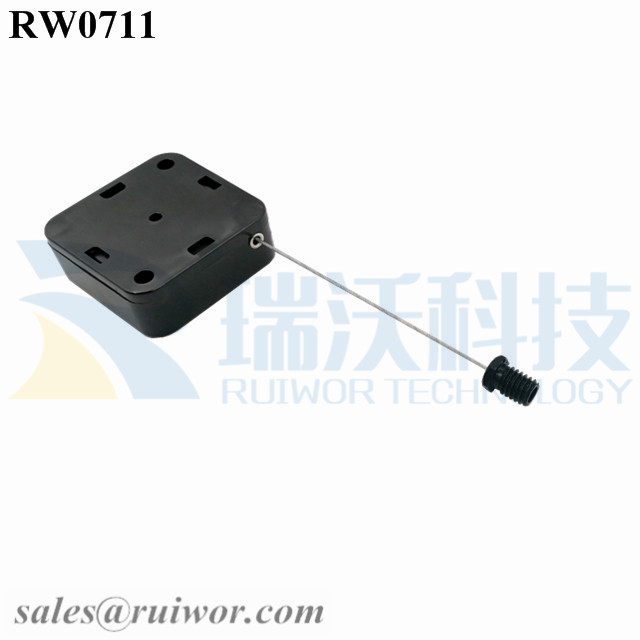

RW0711 Square Heavy Retractable Cable Mechanism Plus M6x8MM /M8x8MM or Customized Flat Head Screw Cable End

Retractable Cable Mechanism also known as Anti theft pull box, Anti theft Recoiler, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.

RUIWOR RW0711 Retractable Cable Mechanism has a curve square shape attain a Nice Design, Plump and Smooth Box also cause a visual enjoyment, it also has many options on available retracting forces and cable length and diameter.

RW0711 Retractable Cable Mechanism Parameters

● Materials: Box is made of ABS plastic, with retractable spring built inside and stainless steel cable winding onto the reel inside.
● Box fixing way: Screws mounting (3M double adhesive tape is avaiable, the standard will be Screws mounting) ● Cable Exit Locations: Only one
● Box Size: 48x48x17.3MM
● Box Colors: Black (Customized color are avaiable, the standard will be Black)
● Available Retracting forces: 0.6LB (1/3LB, 1/2LB, 1LB, 1.2LB and customized force are avaiable, the standard will be 0.6LB)
● Cable Colors: Transparent nylon cover the stainless steel cable (Black nylon covered and customized color are avaiable, the standard will be Transprent nylon covered)
● Retractable Cable length: 95 cm (Customized length is avaiable, Max: 95cm, the standard will be 95cm)
● Cable Diameter: 0.9mm (0.6mm, 0.9mm and customized size are avaiable, the standard will be 0.9mm)
● Cable end details: M6x8MM Flat Head Screw (M8x8MM and customized screw are avaiable, the standard will be M6x8MM)

RW0711 Retractable Cable Mechanism Specifications

RW0711 Security Pull Box specifications (cable exit details, box size details)

Remark:
For RW0711 retractable cable mechanism, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW0711 retractable cable mechanism can not meet your requirements, please return to the top and send us an inquiry to discuss more details.
