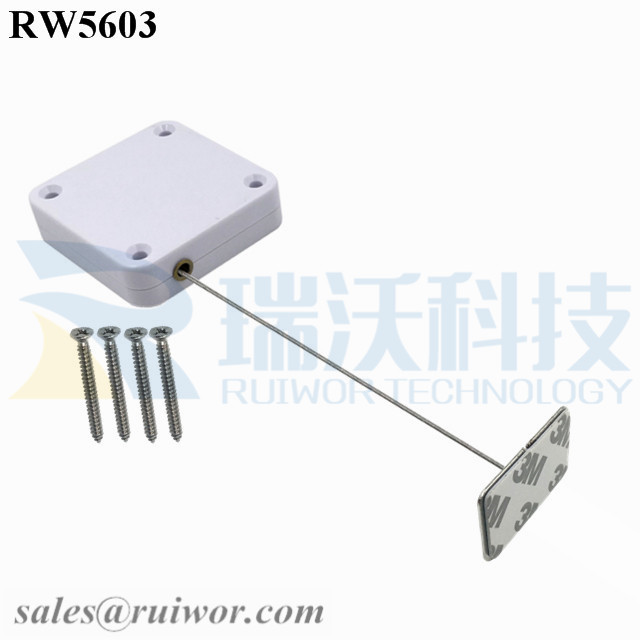

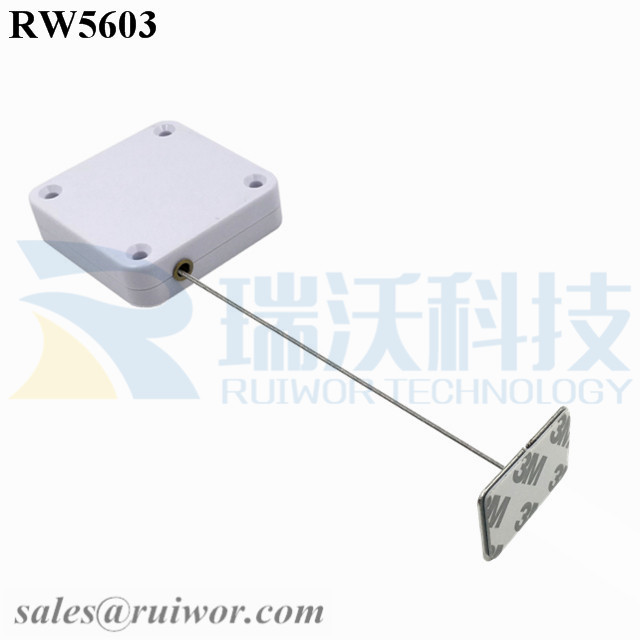

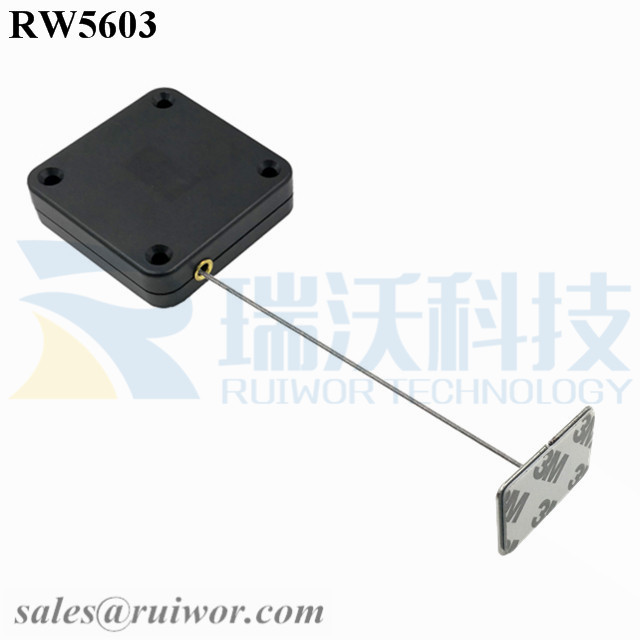

RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate Featured Image
  • RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate
  • RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate
  • RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate
  • RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate

RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate

  • Model Number:  RW5603
  • Box Size:  63.5(L)x63.5(W)x17.5(H) MM
  • Box Color:

  • Box Fixing Accessories:

  • Cable Materials:

  • Cable End:

  • Additional Functions:

  • Retractable Cable Length:

  • Cable Retracting Force:

  • Cable Diameter:

    • Reset
  • Packaging Requirements:

Prices of customized products needto be negotiated
USD$2.76
Wholesale Price:
Qty Unit Price Lead Time
0 -49 Sets USD$2.76 6 Working Days
50 -199 Sets USD$1.76 6 Working Days
200 -499 Sets USD$1.68 6 Working Days
500 -999 Sets USD$1.51 6 Working Days
1000 - USD$1.42 7 Working Days

Product Detail

Product Tags

Video Display about RW5603 Heavy Duty Retractable Cable

RW5603 Square Retractable Rope Reel Plus 35X22mm Rectangular Adhesive metal Plate

Retractable Rope Reel also known as Anti theft Pull box, Security Pull box, Anti theft retractors, security tether and pull-box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.

RW5603 Retractable Rope Reel is a Square-shaped Box with so many parameters can be customized.

RW5603 Retractable Rope Reel Parameters

● Materials: Box is made of ABS plastic, with retractable spring built inside and nylon cover stainless steel cable (304 stainless steel, structure 7*7) winding onto the reel inside.
● Box fixing way: 3M double adhesive tape (Screws mounting is avaiable, the standard will be 3M Tap) ● Cable Exit Locations: Only one
● Box Size: 63.5×63.5×17.5 MM (Square-shaped)
● Box Colors: Black (White and Customized color are avaiable, the standard will be Black)
● Available Retracting forces: 1/3LB (1/4LB, 1/2LB, 1LB, 2LB customized force are avaiable, the standard will be1/3LB)
● Cable Colors: Transprent nylon cover the stainless steel cable (black nylon covered and customized color are avaiable, the standard will be transprent nylon covered) ● Retractable Cable length: 95 cm (Customized length is avaiable, Max: 600cm, the standard will be 95cm)
● Cable Diameter: 0.9mm (0.6mm, 1.2mm, 1.5mm, 2mm, 2.5mm and customized size are avaiable, the standard will be 0.9mm)
● Cable end details: 35X22MM Rectangular Adhesive metal Plate (25*20MM and customized size are avaiable, the standard will be 35*22MM)

RW5603 Retractable Rope Reel Specifications

RW5603 Retractable Rope Reel specifications (cable exit details, box size details)

Remark:
For RW5603 retractable rope reel, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW5603 retractable rope reel can not meet your requirements, please return to the top and send us an inquiry to discuss more details.
