RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar Featured Image
  • RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar
  • RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar
  • RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar
  • RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar

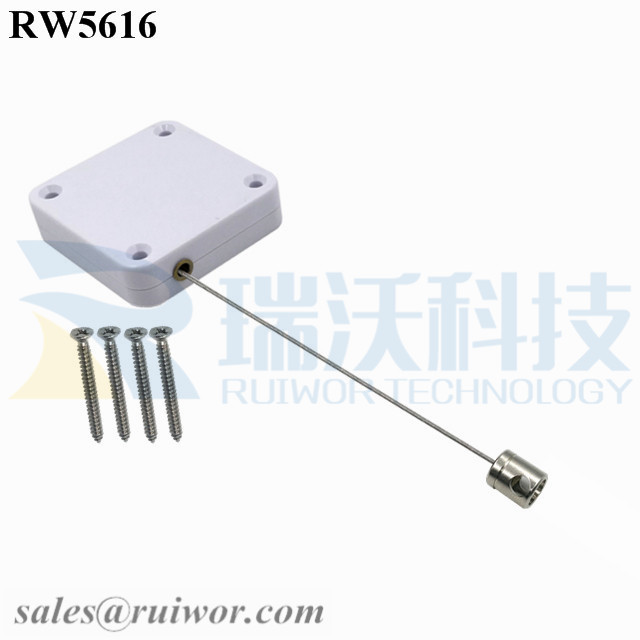

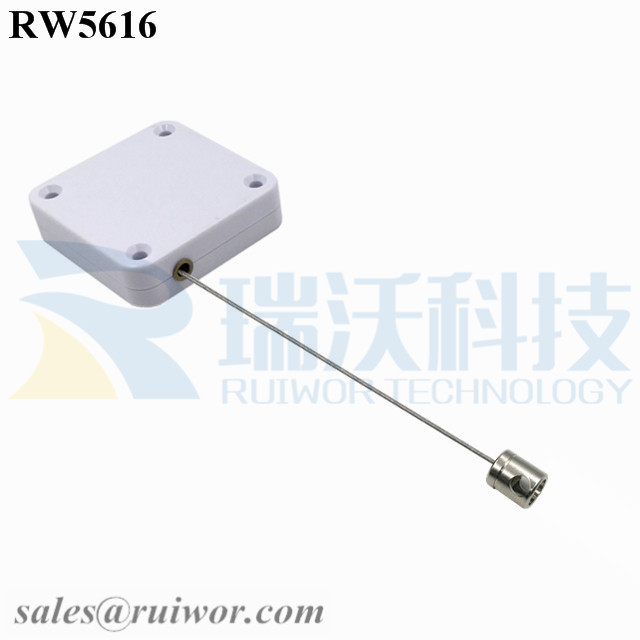

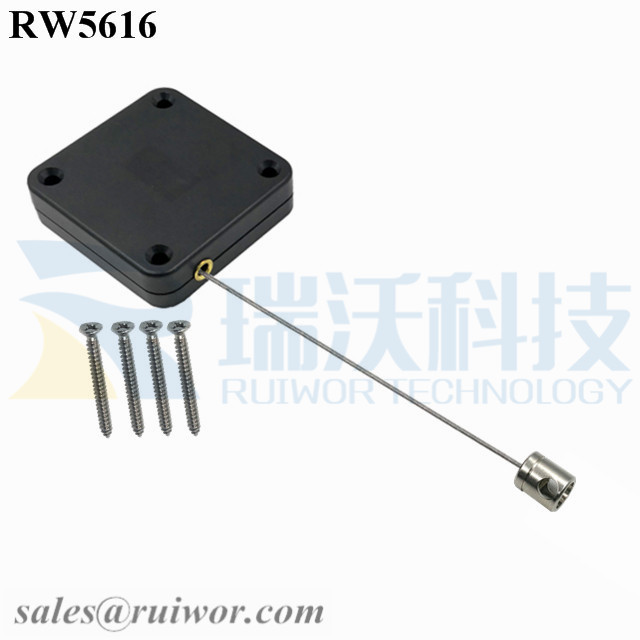

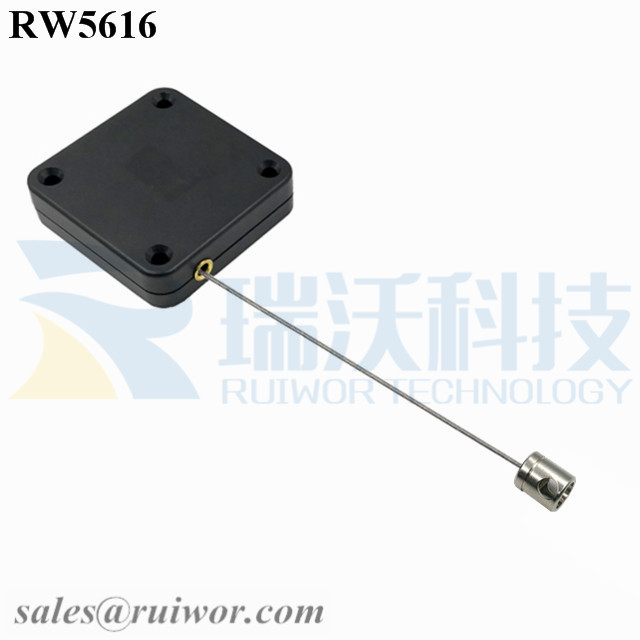

RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar

  • Model Number:  RW5616
  • Box Size:  63.5(L)x63.5(W)x17.5(H) MM
  • Box Color:

  • Box Fixing Accessories:

  • Cable Materials:

  • Cable End:

  • Additional Functions:

  • Retractable Cable Length:

  • Cable Retracting Force:

  • Cable Diameter:

    • Reset
  • Packaging Requirements:

Prices of customized products needto be negotiated
USD$2.72
Wholesale Price:
Qty Unit Price Lead Time
0 -49 Sets USD$2.72 6 Working Days
50 -199 Sets USD$1.73 6 Working Days
200 -499 Sets USD$1.65 6 Working Days
500 -999 Sets USD$1.48 6 Working Days
1000 - USD$1.40 7 Working Days

Product Detail

Product Tags

Video Display about RW5616 Heavy Duty Retractable Cable

RW5616 Square Retail Retractable Rope Reel Plus Side Hole Hardwar

Retractable Rope Reel also known as Anti theft Pull box, Security Pull box, Anti theft retractors, security tether and pull-box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. For example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.

RW5616 Retractable Rope Reel is a Square-shaped Box with so many parameters can be customized.

RW5616 Retractable Rope Reel Parameters

● Materials: Box is made of ABS plastic, with retractable spring built inside and nylon cover stainless steel cable (304 stainless steel, structure 7*7) winding onto the reel inside.
● Box fixing way: 3M double adhesive tape (Screws mounting is avaiable, the standard will be 3M Tap) ● Cable Exit Locations: Only one
● Box Size: 63.5×63.5×17.5 MM (Square-shaped)
● Box Colors: Black (White and Customized color are avaiable, the standard will be Black)
● Available Retracting forces: 1/3LB (1/4LB, 1/2LB, 1LB, 2LB customized force are avaiable, the standard will be1/3LB)
● Cable Colors: Transprent nylon cover the stainless steel cable (black nylon covered and customized color are avaiable, the standard will be transprent nylon covered) ● Retractable Cable length: 95 cm (Customized length is avaiable, Max: 600cm, the standard will be 95cm)
● Cable Diameter: 0.9mm (0.6mm, 1.2mm, 1.5mm, 2mm, 2.5mm and customized size are avaiable, the standard will be 0.9mm)
● Cable end details: Φ8mmx9.5mm Side Hole Hardwar (Φ6mmx5mm and customized size are avaiable, the standard will be Φ8mmx9.5mm)

RW5616 Retractable Rope Reel Specifications

RW5616 Retractable Rope Reel specifications (cable exit details, box size details)

Remark:
For RW5616 retractable rope reel, Box color, Cable color, Cable diameter, Cable length,Retract Pull force are can be customized.
If the above RW5616 retractable rope reel can not meet your requirements, please return to the top and send us an inquiry to discuss more details.

Similar Products to RW5616 Retractable Rope Reel

If above RW5616 Cuboid retractable rope reel is not the best product you need, Following similar Cuboid retractable rope reel for your reference:
1. The Retractable Rope Reel with same box but different cable ends (Click on the picture to get more product information)

RW5600 Series Heavy Duty Retractable Cable

RW5600 Square Heavy Duty Retractable Cable Work with Connectors for Various Products Security Display RW5601 Square Heavy Duty Retractable Cable with Ring Terminal Inner Hole 3mm 4mm 5mm for Option RW5602 Square Heavy Duty Retractable Cable Plus Dia 30mm Circular Adhesive ABS Plate Cable Thickest 2.5MM Longest 600CM RW5603 Square Heavy Duty Retractable Cable Plus 35X22mm Rectangular Adhesive metal Plate RW5604 Square Heavy Duty Retractable Cable Plus 45X19mm Rectangular Sticky metal Plate RW5605 Square Heavy Duty Retractable Cable Plus Adjustalbe Lasso Loop by Small Lock and Allen Key Forces MAX 2.5LB Longest 6M RW5608 Square Heavy Duty Retractable Cable Plus Dia 38mm Circular Sticky Flexible ABS Plate RW5609 Square Heavy Duty Retractable Cable Plus Size Customizable Fixed Loop End RW5610 Square Heavy Duty Retractable Cable Plus 25X15mm Rectangular Adhesive ABS Plate RW5611 Square Heavy Duty Retractable Cable Plus M6x8MM /M8x8MM or Customized Flat Head Screw Cable End RW5613 Square Heavy Duty Retractable Cable Plus Dia 30MMx5.5MM Circular Adhesive ABS Block RW5614 Square Heavy Duty Retractable Cable Plus with Demountable Key Ring RW5615 Square Heavy Duty Retractable Cable Plus Wire Rope Ring Catch RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar RW5617 Square Heavy Duty Retractable Cable Plus Magnetic Clasps Cable Holder RW5618 Square Heavy Duty Retractable Cable Plus Dia 38mm Circular Sticky metal Plate RW5619 Square Heavy Duty Retractable Cable up to 5m Plus Dia 22mm Circular Sticky metal Plate RW5621 Square Heavy Duty Retractable Cable Plus 33X19MM Oval Sticky Flexible Plate RW5622 Square Heavy Duty Retractable Cable Plus 10x31MM Two Screw Perforated Oval Metal Plate Connector Installed by Screw RW5624 Square Heavy Duty Retractable Cable Plus Key Hook RW5625 Square Heavy Duty Retractable Cable Plus Dia 38mm Circular Adhesive Plastic Plate RW5626 Square Heavy Duty Retractable Cable Plus Adjustable Stainless Steel Wire Loop Coated Silicone Hose

2. The Retractable Rope Reel with same cable ends but different box shapes (Click on the picture to get more product information)
RW0016 Cable End Series Anti Theft Pull Box with Side Hole Hardwar

RW0816 D-shaped Mini Retractable Tether Plus Side Hole Hardwar Tether Cord End as Tethered Item RW1016 Drop-shaped Retail Retractable Security Tether Plus Side Hole Hardwar Terminal RW5416 Heart-shaped Security Pull Box Plus Side Hole Hardwar RW1116 Square Retail Security Tether Plus Side Hole Hardwar RW1716 Square Security Tether Plus Side Hole Hardwar RW5616 Square Heavy Duty Retractable Cable Plus Side Hole Hardwar RW5216 Round Anti Theft Retractor Plus Side Hole Hardwar RW5316 Round Security Display Tether Plus Side Hole Hardwar RW0716 Square Retractable Cable Plus Side Hole Hardwar Tether Cord End as Tethered Item RW0516 Cuboid Anti Theft Pull Box with Side Hole Hardwar Cable End Used for Product Positioning RW0616 Cuboid Ratcheting Retractable Cable Plus Stop Function with Side Hole Hardwar Tether Cord End as Tethered Item RW4916 Square Ratcheting Retractable Tether Plus Pause Function Plus Side Hole Hardwar RW1516 Cuboid Multifunctional Retractable Cable with Side Hole Hardwar Cable End Used for Product Positioning
